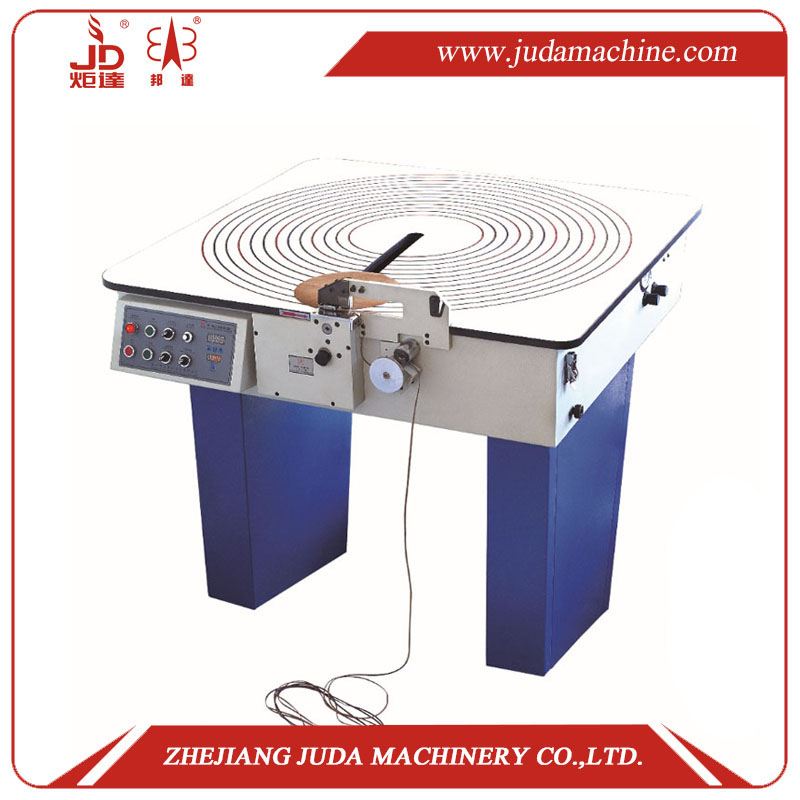

BD-104LEATHER SPIRE CUTTING LINE MACHINE

USE

The machine is used for cutting soft or hard leather, which the thickness is from 0.5mm to 4mm, into the needed width line. It has functions of high accuracy, fast cutting speed, adjustable cutting width and equipping with knife-grinder. The machine is widely used for cutting line of raw material that used in industries such as clothes, case and bag, shoe making (leather shoelace), etc.

PARAMETER

Model: BD-104

Power: 220V 50Hz

Power of motor: 0.75kW

Thickness of the cut leather: 0.5-4mm

Cutting speed: 10-150m/min

Cutting width: 2-10mm

Max cutting diameter: 1040mm/1840mm

Package size: 1230×1140×1110mm

Gross weight / Net weight: 235kg/195kg
