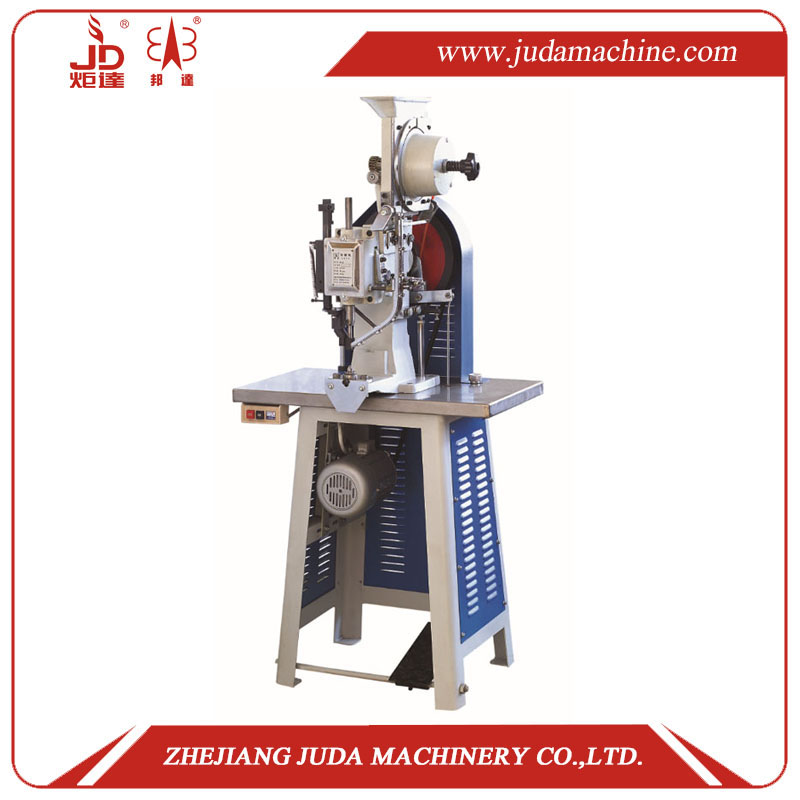

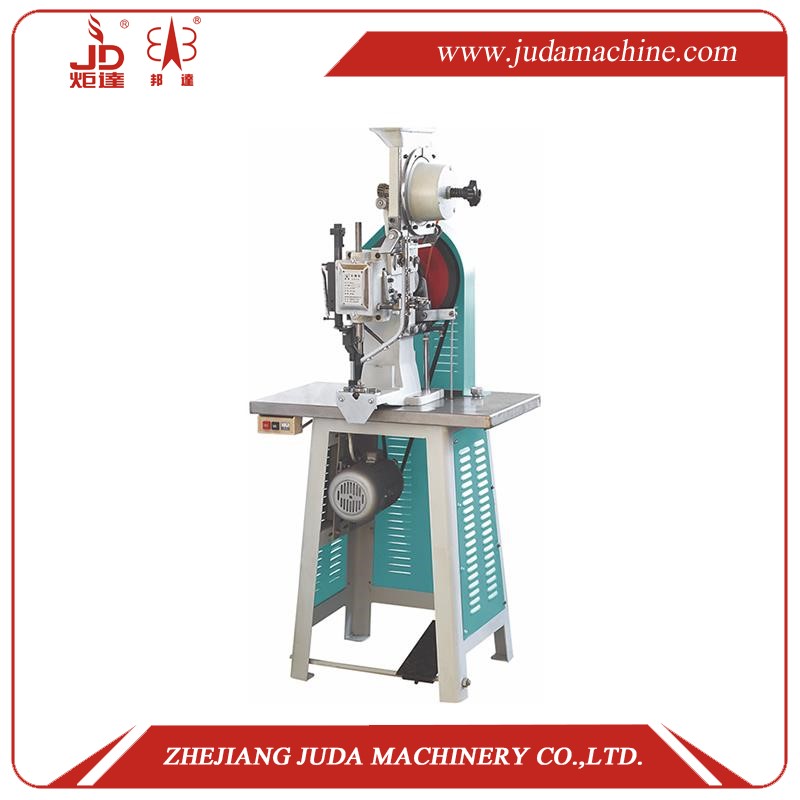

BD-17 FASTENER RIVETING MACHINE

USE

BD-17 type riveting machine is an automatic riveting equipment for hollow rivet, diamond rivet, fastener rivet. It adapts to leather shoes, leather bag, clothes, belt, handcrafts, and etc.

CHARACTERS

1.Adopt the way of dividing material by rotating plate, delivering from flowing channel and feeding automatically.

2.The riveting structure of clipping rivet makes the rivet more correctly.

3.Equips with laser positioning device, and makes the position of riveting more accurately.

4.No need punching holes to thin material and can riveting directly.

5.The structure of machine is simple and the operation is easy.

PARAMETER

Model: BD-17

Power: 380V 50Hz

Work power: 0.37kW

Rotate Speed of Main Shaft: 200rpm/min

Package size: 790×550×1550mm

Gross weight / Net weight: 140kg/110kg
