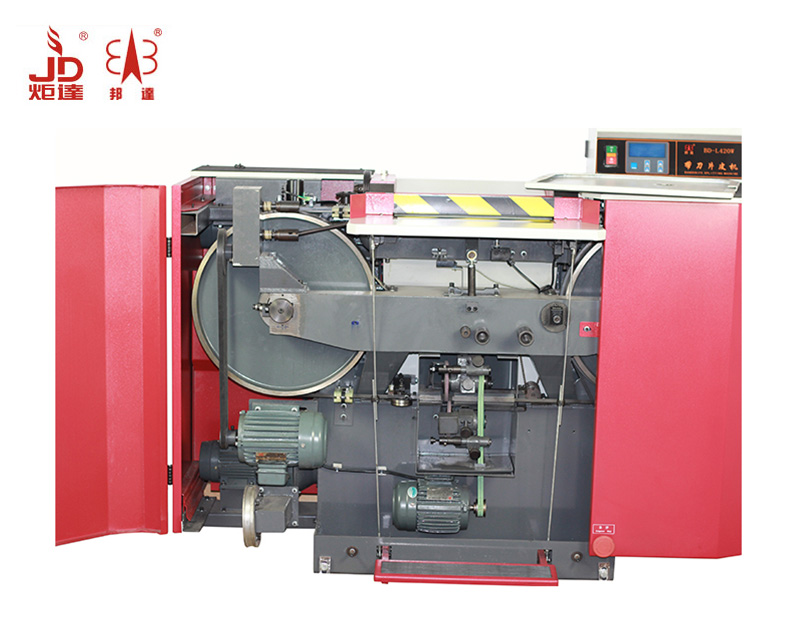

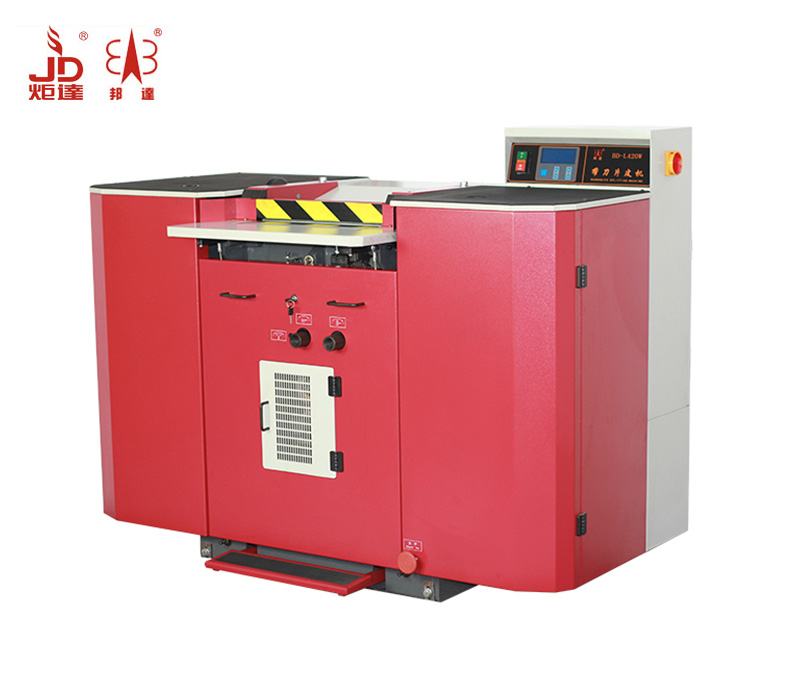

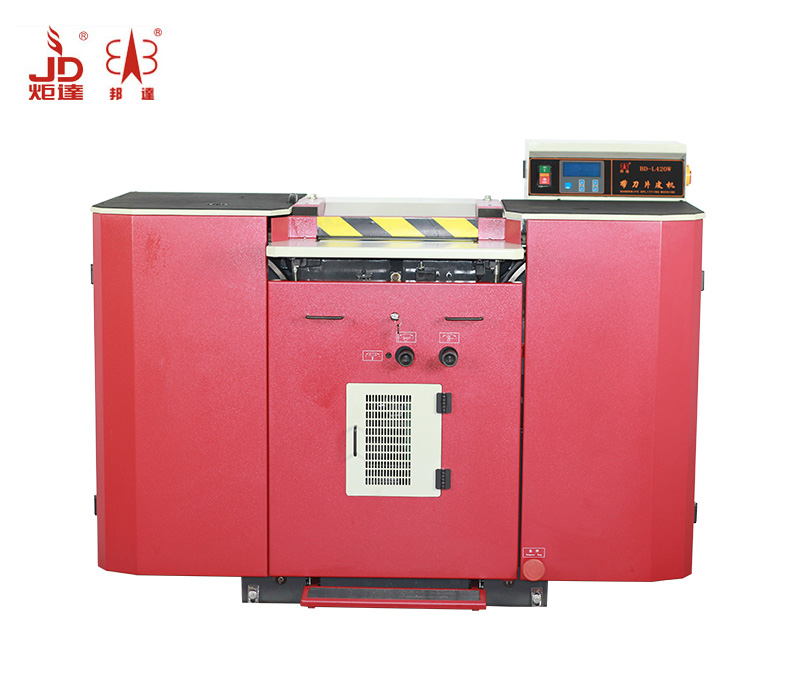

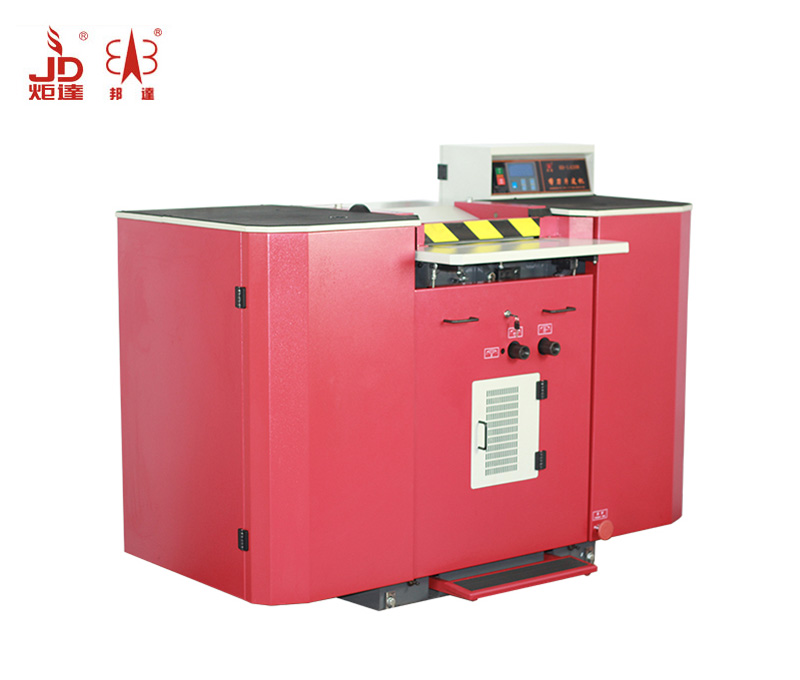

BD-L420W Plc Band Knife Splitting Machine
BD-L420W PLC BAND KNIFE SPLITTING MACHINE
USE
The machine adapts to splitting the hard or soft leather symmetrically, which the width is less than 420mm and the thickness is less than 8mm, according to the required thickness in the industry of leather products. It can adjust the splitting thickness freely, improve the quality of
products and strengthen the competitiveness of markets.

CHARACTERS
1.Splitting thickness displayed by plc LCD, the infinitely variable adjustment of feeding, accurate number counting function.
2.With automatic feed registration device, no need to adjust cutting tool.
3.Automatic pause system when leather material entangles in and automatic detection system of electronic phase.
4.Freestanding set of dust absorbing and knife grinding dust absorbing device.
5.The accurate rail makes the movement of flying wheel more reliable, and the replacement of band knife more easily and conveniently.

PARAMETER
Model: BD-L420W
Max width of split:420mm
Max thickness of split:8mm
Min thickness of split:0.15mmwith top bar,0.5mm with top feed roller
Specification of band knife:3570×50×0.6mm
Package size:1780×1130×1500mm
Gross weight / Net weight:810kg/720kg
OnLine Service:
Product Details

BD-L420W PLC BAND KNIFE SPLITTING MACHINE

USE

The machine adapts to splitting the hard or soft leather symmetrically, which the width is less than 420mm and the thickness is less than 8mm, according to the required thickness in the industry of leather products. It can adjust the splitting thickness freely, improve the quality of

products and strengthen the competitiveness of markets.

CHARACTERS

1.Splitting thickness displayed by plc LCD, the infinitely variable adjustment of feeding, accurate number counting function.

2.With automatic feed registration device, no need to adjust cutting tool.

3.Automatic pause system when leather material entangles in and automatic detection system of electronic phase.

4.Freestanding set of dust absorbing and knife grinding dust absorbing device.

5.The accurate rail makes the movement of flying wheel more reliable, and the replacement of band knife more easily and conveniently.

PARAMETER

Model: BD-L420W

Max width of split420mm

Max thickness of split8mm

Min thickness of split0.15mmwith top bar0.5mm with top feed roller

Specification of band knife3570×50×0.6mm

Package size1780×1130×1500mm

Gross weight / Net weight810kg/720kg
