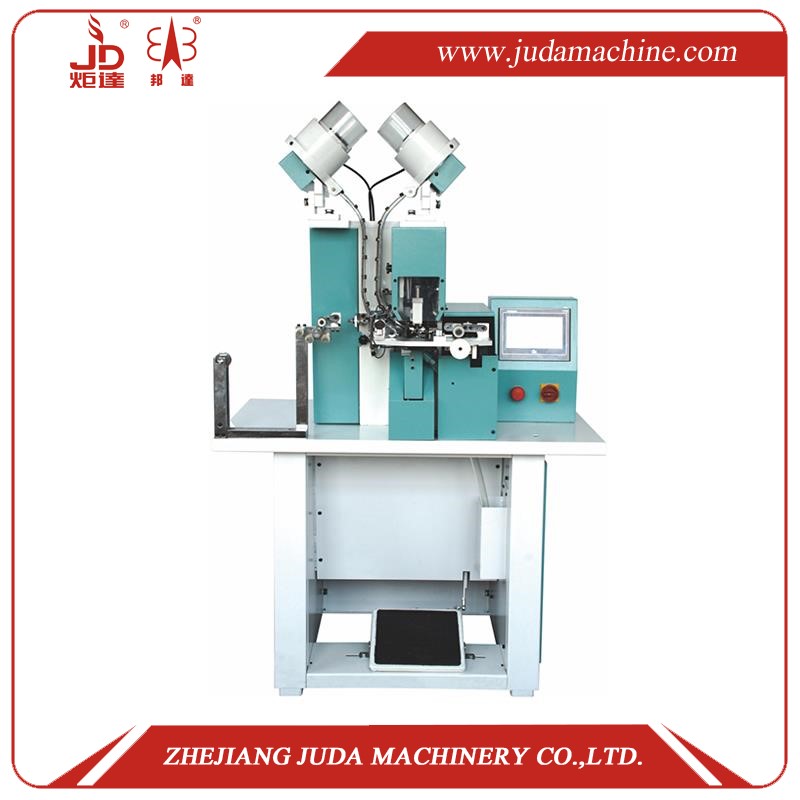

BD-98A AUTOMATIC PUNCHING & EYELETTING MACHINE
CHARACTERS
Adopt PLC and touchscreen control,display fault detectionautomatically.It's easy to maintain and user-friendly to operate.
Automatic punching,feeding and riveting eyelets can becompleted at one time.
Multiple riveting modes are available: single row,multiple rows,custom mode and segment mode.
1. Single row and multiple-row mode: fill in the X and Y axis datato rivet eyelet in tape or leather belt;
2. Custom mode: after the dislance required for each eyeletis programmed,the eyelet can be riveted;
3. Segment mode: for the entire fabric belt or leather belt,afterprogramming required data and riveting,it can clip by segments.
PARAMETER
Model: BD-98A
Voltage: 220V 50Hz
Power: 0.95kW
Working speed: 120times/min
Nailing size: NO.150-600#
(8mm≥ inner diameter≥3.5mm ; Height≥2.2mm)
Dimension: 1090x770x1530mm
Gross weight / Net weight: 280kg/240kg
