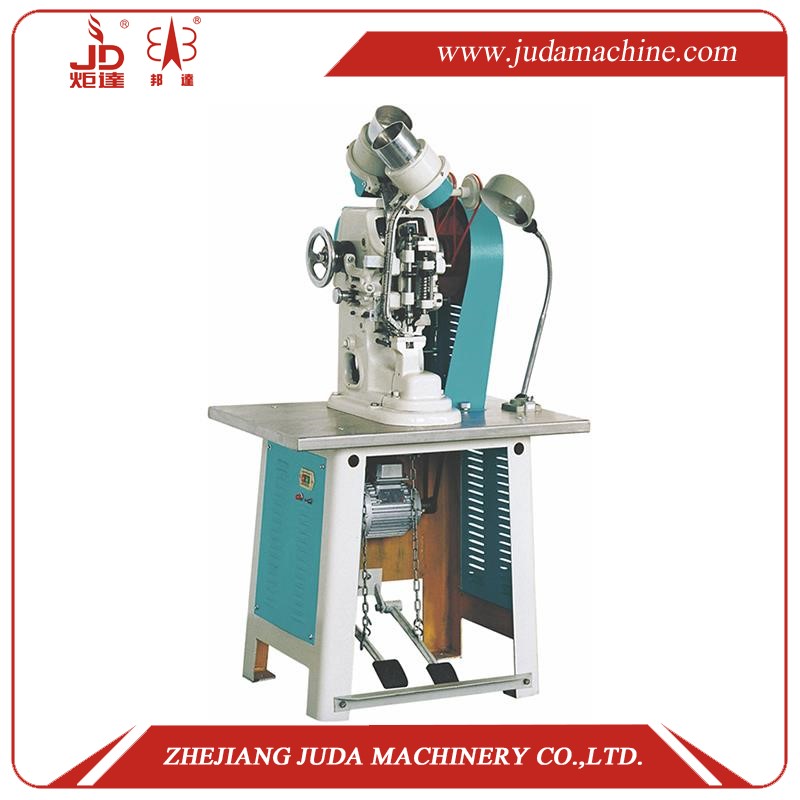

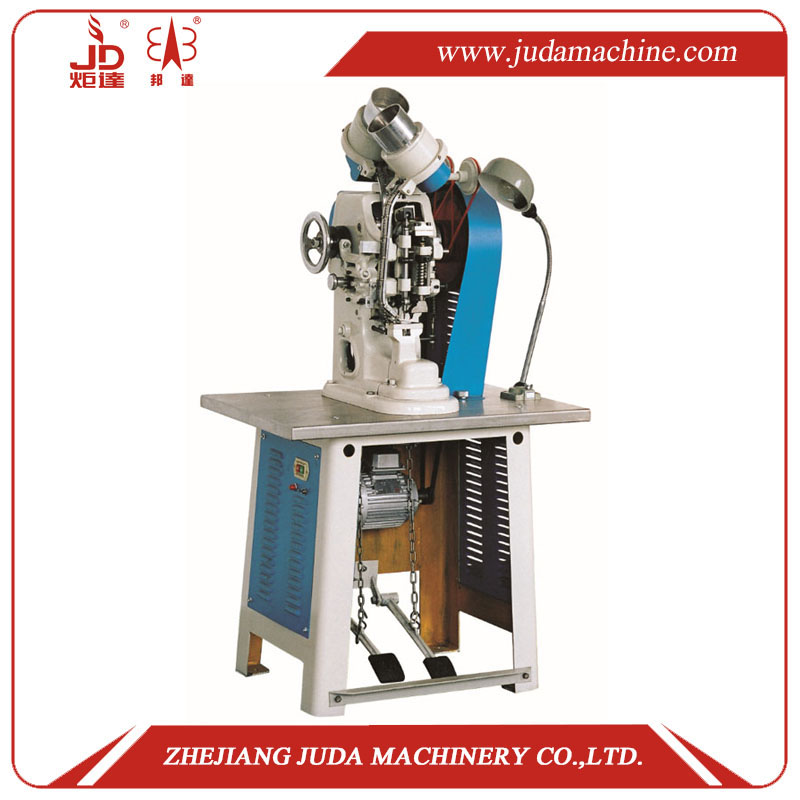

BD-95 AUTOMATIC DOUBLE-SIDE EYELETTING MACHINE
CHARACTERS
1. The machine can automatically punch or continuously punch and rivet eyelets, the punching and eyeletting can be finished once.
2. Can adjust the pitch of two eyes freely according to the requirement.
3. The riveted shoes eyes are neat, beautiful and ametabolic.
4. Easy operation and reliable performance.
5. The efficiency is 8-15 times of manual operation.
PARAMETER
Model: BD-95
Nailing speed: 220times/min
Spacing adjustment: 12-35mm
Nailing size: NO. 150-600＃
Size 8≥Inside diameter≥3.5mm , Height≥2.2mm
Power of motor: 0.55kW
Package size: 950×650×1720mm
Gross weight / Net weight: 285kg/250kg
