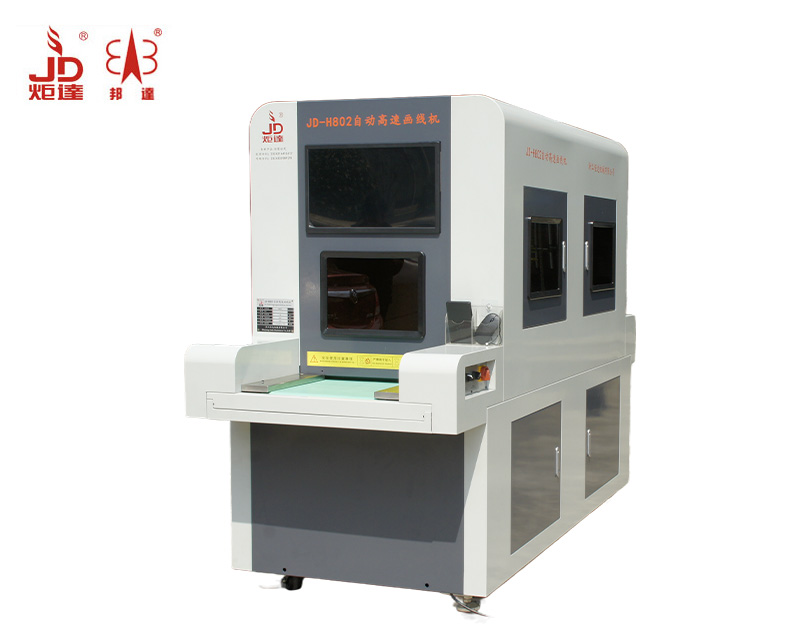

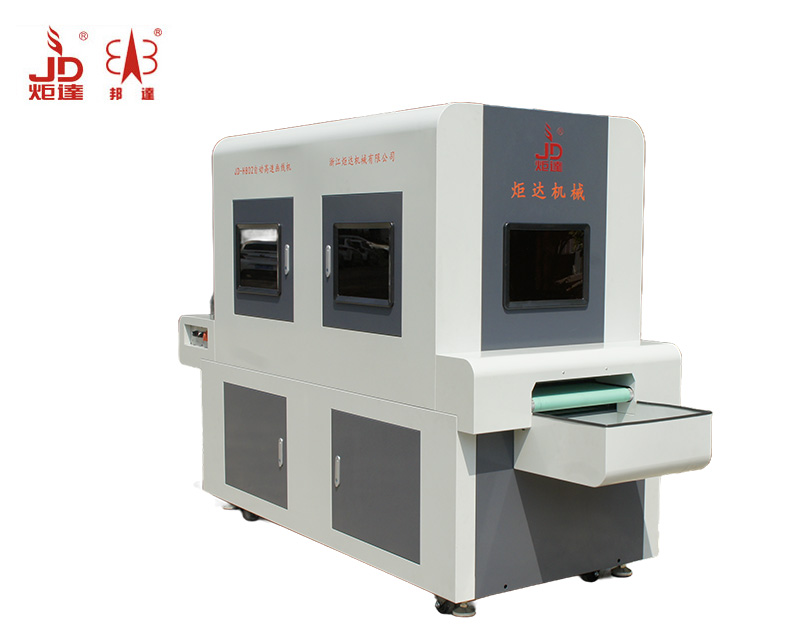

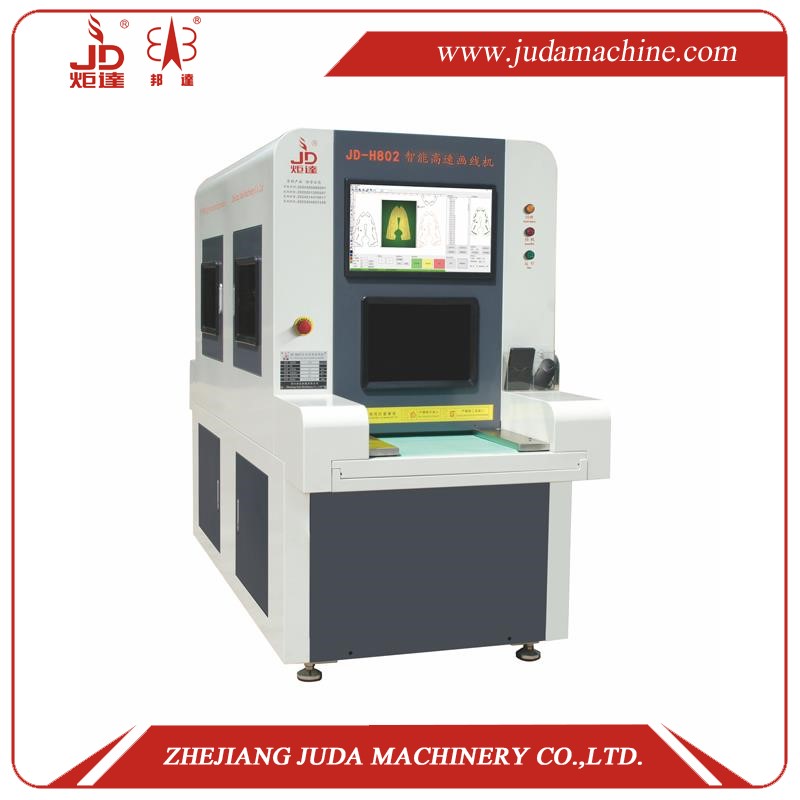

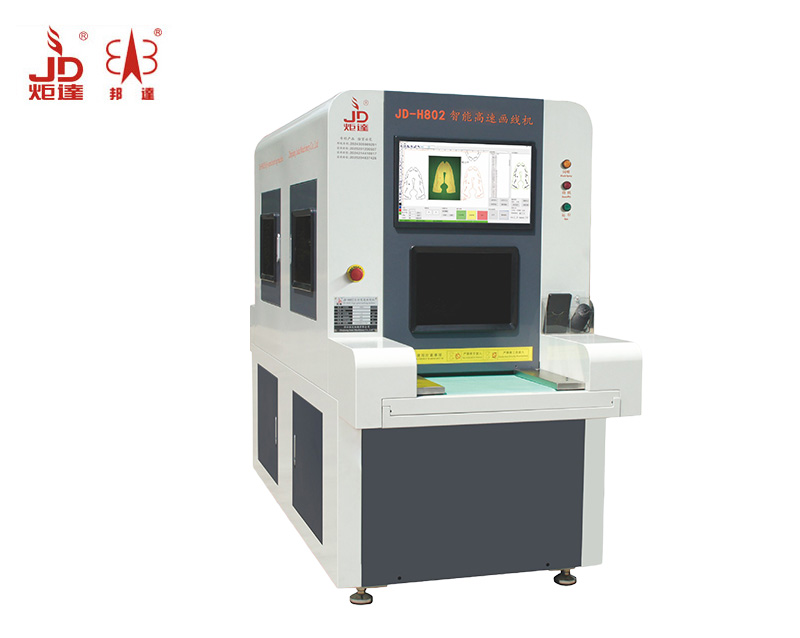

JD-H802 INTELLIGENT HIGH-SPEED MARKING MACHINE
CHARACTERS
Vision Positioning System: Equipped with high-speed industrial cameras and utilizing dynamic vision algorithms, it achieves high-precision and efficient performance.
Mechanical Structure Optimization: Featuring a narrow-width conveyor belt design, the footprint is reduced by 60% compared totraditional equipment. The material feeding process is seamless without waiting, and the drawing efficiencyis increased by three times.
Intelligent Inkjet System: 16 ink cartridges are arranged in ahorizontal array, equipped with an ink cartridge maintenancesystem to extend the service life of the cartridges.
Intelligent Contorl System: 24 inch industrial display screen, PLC central control system, graphical operation interface in both Chinese and English, with self diagnostic fault prompts.
PARAMETER
Model: JD-H802
Speed: 30m/minute
Power: 220V 50-60Hz
Power of motor: 1.1kW
Air pressure: 0.4Mpa
Dimension: 2700x985x1780mm
Package size: 2480x1110x1990mm
Gross weight/ Net weight: 770kg/650kg
