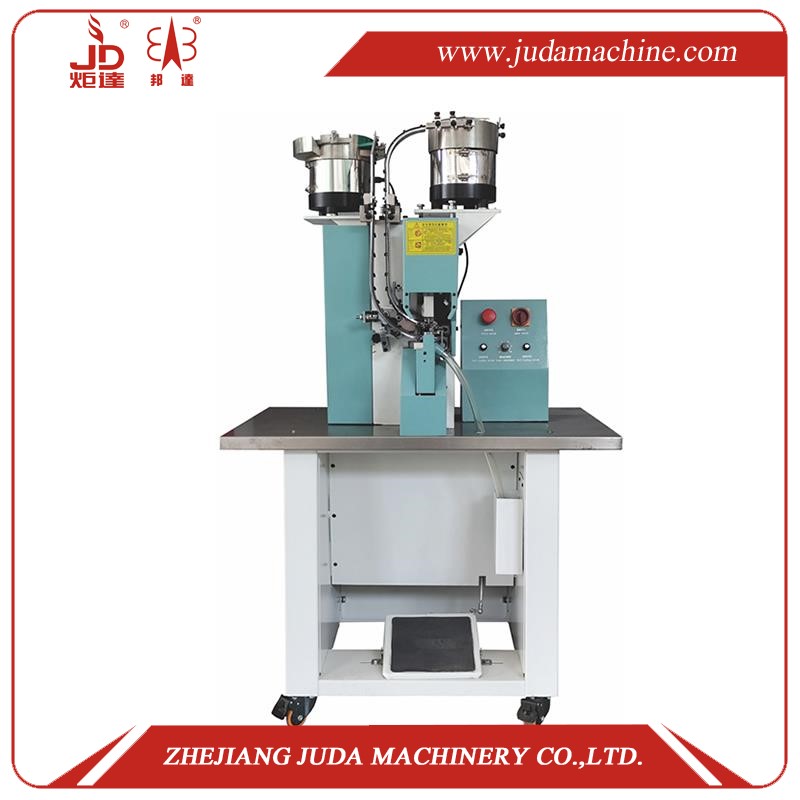

BD-98Y AUTOMATIC PUNCHING & EYELETTING MACHINE
CHARACTERS
Adopt intelligent control.
Main motor does not start up during standby which is energy saving.
Punching and riveting are completed successively at the same workstation,making the operation simple, fast and accurate,greatly improving the production.
Puncher and riveting moulds are made of imported high-strength alloy material which is not easy to wear.
Laser positioning makes riveting easier.
Design of emergency shutdown system provides best safety protection for machine overhaul and maintenance.
PARAMETER
Model: BD-98Y
Voltage: 220V 50Hz
Power: 0.6kW
Working speed: 120times/min
Nailing size: NO.150-600#
(8mm≥ inner diameter≥3.5mm ; Height≥2.2mm)
Dimension: 1000x605x1530mm
Gross weight / Net weight: 280kg/240kg
