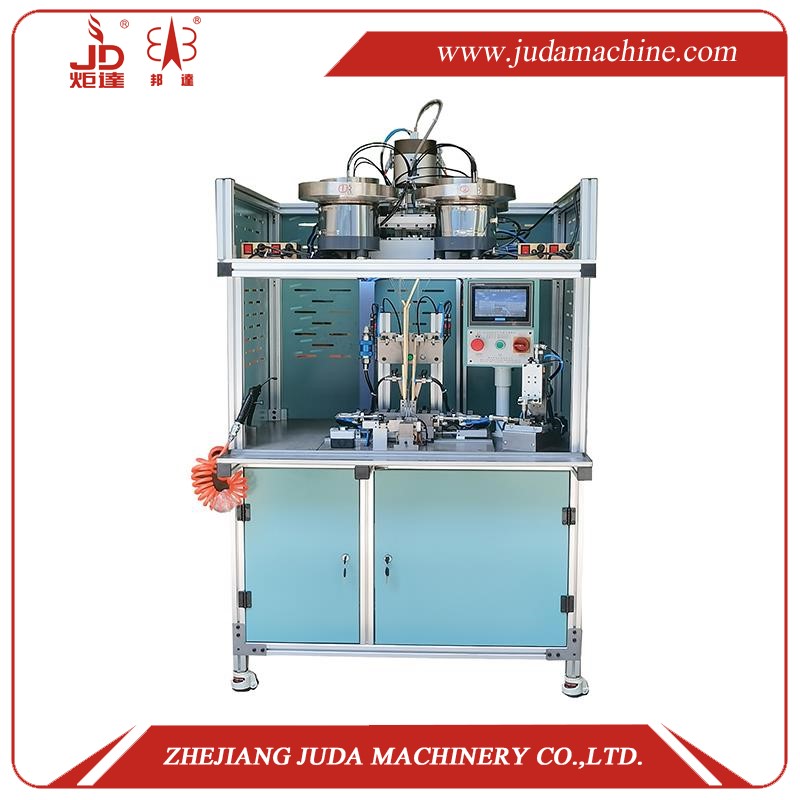

JD-626A AUTOMATIC FLAT TUMBLER LOCK CYLINDER ASSEMBLY MACHINE
CHARACTERS
Using touch screen display and PLC system to control servo motors and pneumatic components to perform work.
Equipped with a high-precision encoder (displaying 0.01) to measure the key accurately.
Equipped with high-precision servo motor, high-precision guide rail and ball screw, ensuring efficient and accurate operation with a running accuracy of 0.03mm.
The air flow blows the springs and the cylinder pushes the flat tumblers, with fast speed and good stability.
Unique modeling structure design, pull-pin disassembly of various components, convenient maintenance and inspection, and easy operation.
The action part is equipped with monitoring and detection, and the display screen displays system faults, making it easy and convenient for operators to troubleshoot, saving time and effort.
PARAMETER
Machine efficiency: 700pcs/hour
Display functions: adjustable data, system fault prompt
Operation accuracy: ±0.03mm
Rated pressure:0.6Mpa
Power supply:220V±10%
Power:1.6kW
Machine dimension:1000x850x1310mm
Machine weight:375kgs
