BD-98 AUTOMATIC PUNCHING & EYELETTING MACHINE
CHARACTERS
1.The machine adopts intelligent control, standby when the main motor does not start, high efficiency and energy saving.
2.Successively completed for punching and riveting in the same station, quick and accurate, greatly increased the yield of product.
3.Punching and riveting die adopts imported high strength alloy materials, not easy to wear and tear.
4.Laser positioning, riveting easier.
5.Scram system design for the machine maintenance and maintenance of providing security for the best.
PARAMETER
Model: BD-98
Voltage: 220V 50Hz
Power: 0.6kW
Working speed: 120times/min
Suitable sizes: 150#-600#
Dimension: 1000×605×1530mm
Gross weight / Net weight: 280kg/240kg

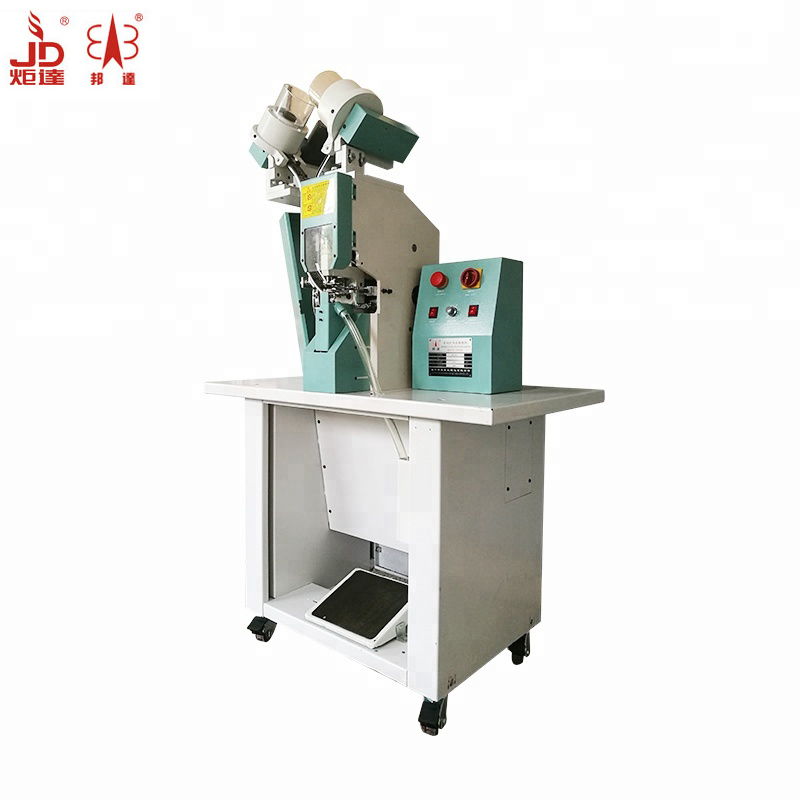

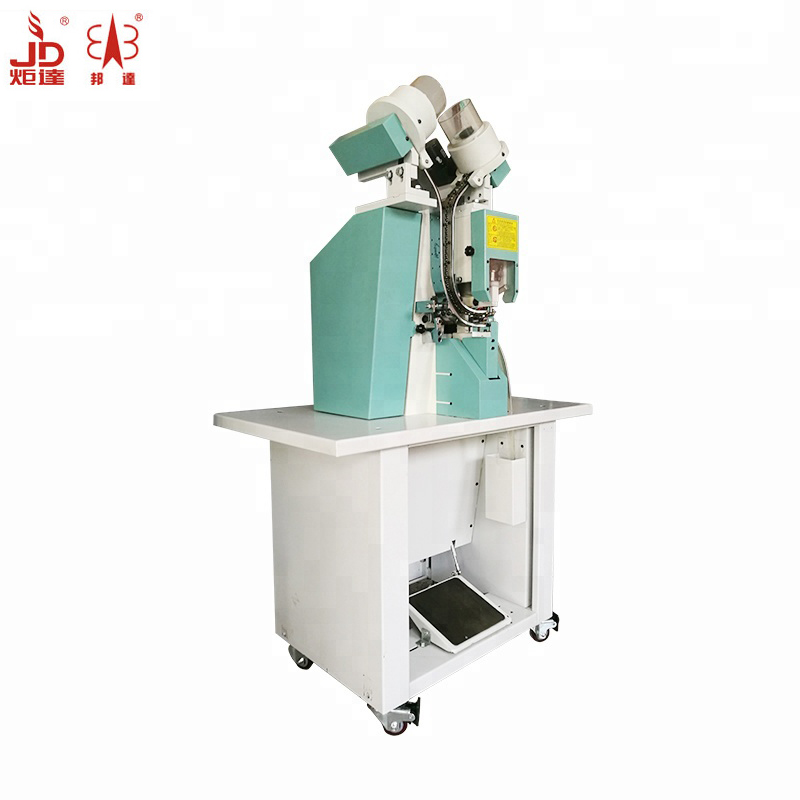

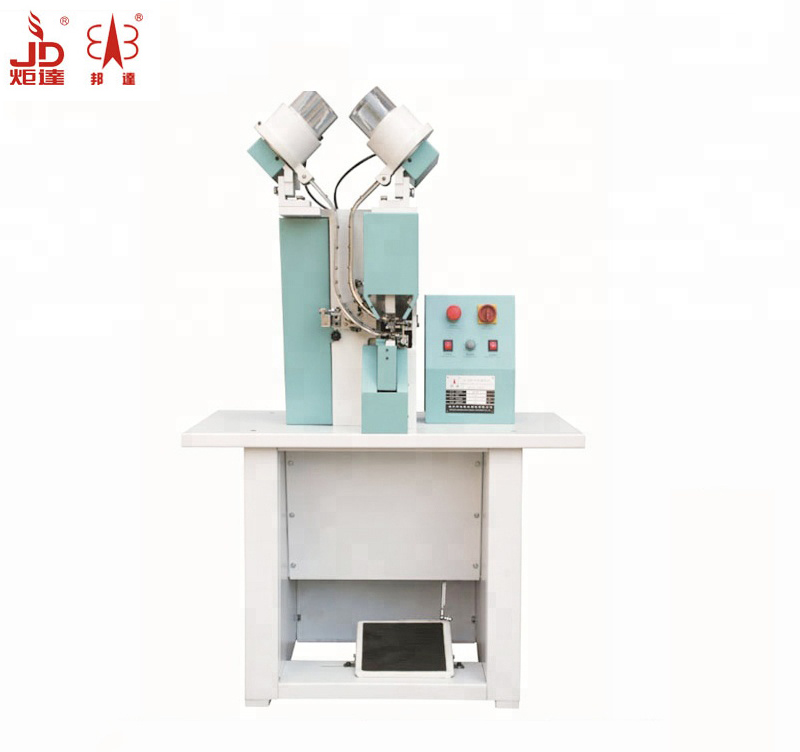

PRODUCT MULTI-ANGLE PICTURES
