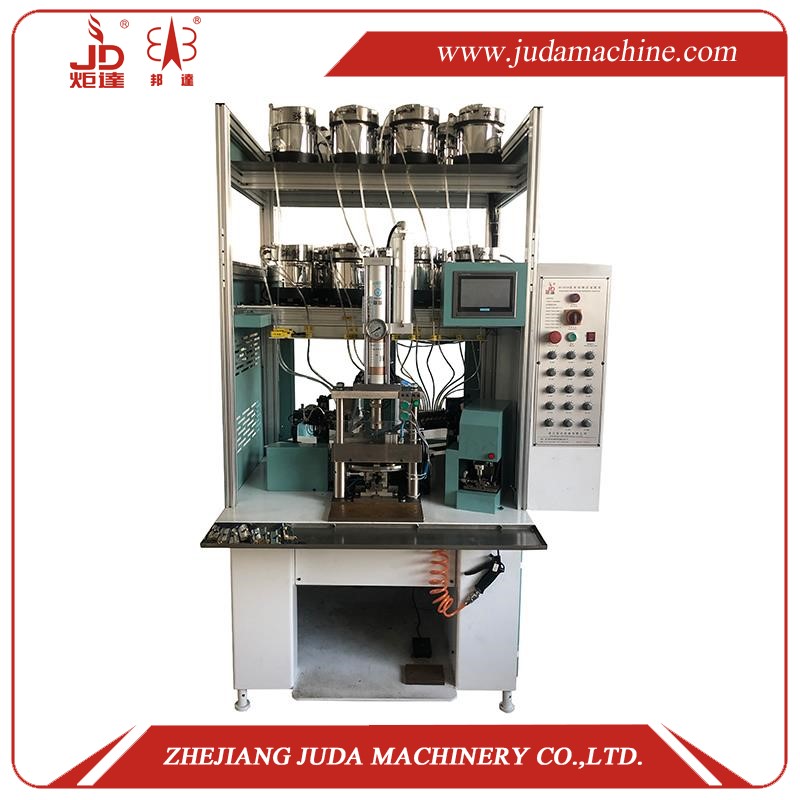

JD-603 AUTOMATIC LOCK CYLINDER ASSEMBLY MACHINE (8 differential pins and 4 drivers)
CHARACTERS
Automatically detects the key bit data, unqualified bit automatic alarm to remind, automatically delete unqualified bit data.
Detection precision of key bit range 0-0.5 mm, can be set arbitrarily.
Automatically detect the feeding of pins, drivers, springs and closing pins, and provide automatic alarm reminders without feeding materials.
Automatically distributes of pins, drivers, springs and closing pins, detect starving will be in standby function.
Equipped with 8 differential pins device, reduce the mutual locks in the same batch.
Automatic detection device lock body in place and clamp lock function, make the pressing more stable and more precision.
With high precision servo motor, high precision guide rail and ball screw, running accuracy in /- 0.03mm, one-time pressing forming accurate and efficient.
Display shows system failure, the operator malfunction easily, save time and effort.
PARAMETER
Lock body length: 60-130mm (includes handle)
Machine efficiency: 320pcs/hour (single row double heads lock) / 240pcs/hour (double rows
double heads lock)
Display functions: adjustable data, system fault prompt
Operation accuracy:±0.03mm
Rated pressure:0.6Mpa
Power supply:220V±10%
Power:1.6kW
Machine dimension:1260x850x2250mm
Machine weight:600kgs
